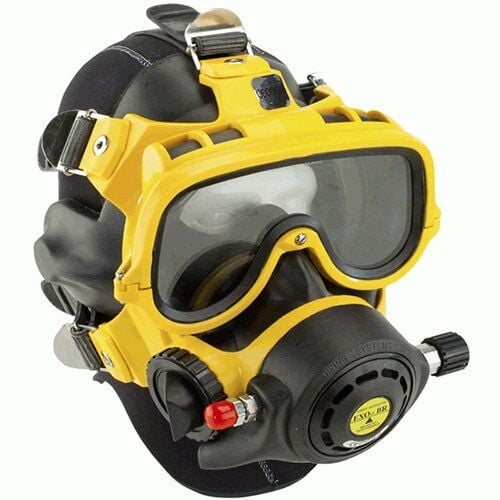

KIRBY MORGAN Full Face Mask EXO-BR

Communications Module - The EXO-BR is available in 3 different modular communication configurations: No communications (blank module), Bare wire post communications, or the most popular; 4 pin male waterproof connector when a 4 wire "round robin" system is desired (see spares, 315-215). Compatible wireless systems are available through several different manufacturers.

EXO Skeleton Frame - A strong injection molded plastic external frame gives the head harness an even pull completely around the mask seal. The EXOskeleton does not touch the diver's face. It is suspended just slightly off the face to hold the communication and breathing equipment in place without discomfort.

EXO-BR Balanced Regulator - CE approved as well as U.S. Navy approved. It meets and surpasses EN 250 requirements for regulator performance.

Faceplate Lens - Tempered glass for strength and minimum fogging. A strong plastic frame surrounds the glass to seal on the rubber mask seal.

Head Harness - A pull through fixed buckle type with an automatic locking feature. Quick release buckles are featured on each rugged, double wide strap.

Mask Seal - Comprises the main rubber body of the mask. It is a soft neoprene that seals comfortably on the diver's face. The EXOskeleton is used to hold this soft rubber seal in place on the diver's face for a solid seal.

Regulator Adjustment - Provides demand regulator adjustment for a wide range of incoming air pressure. In addition, it can serve as a steady flow valve. Some divers prefer a slight steady flow on surface supplied air when air consumption is not a factor.

Silicone Oral Nasal Mask - Made of a superior silicone material which is hypo-allergenic and has a longer work life than latex.

Weight: EXO-BR 4.65 pounds

Mask Frame: Mask Frame Poly Carbonate

Lens: Tempered Glass

Face Seal: Neoprene Blend

Regulator Body: Noryl®

Hardware: Stainless Steel & Chromed Brass

O-Rings: Buna-N

Spider: Neoprene

Recommended Lubricants: Christo-Lube®, Dow Corning® MS4 Silicone Lubricant. Krytox® and Halocarbon® are also acceptable.

Regulator Performance: The Kirby Morgan EXO Balanced Regulator has been CE approved in Europe for scuba use in conjunction with the Kirby Morgan DSI First Stage Regulator and Overpressure Relief Valve.

Cage Code: The cage code for identifying Kirby Morgan DSI products for U.S. government purposes is 58366.

CR Standards: These masks meet or exceeds all standards established by Dive Lab of Panama City, Florida, and are CR (Commercially Rated) marked.

CE Approved: Kirby Morgan EXO-BR masks are CE Approved.

Operational Specifications and Limitations: The CE approved Kirby Morgan EXO-BR complies with EM 250 (edition May 1993). The EXO-BR has been CE tested for scuba use with the Kirby Morgan DSI SuperFlow first stage regulator. The Kirby Morgan EXO-BR has also been CE tested for surface supplied umbilical diving. Regardless of the mode being employed, all components used with, or in conjunction with the Kirby Morgan EXO-BR must be CE approved.

Air Supply Pressure: All Kirby Morgan masks and helmets are designed for a maximum working supply pressure of 225 psig (15.5 bar). What this actually means is the gas train components i.e., intermediate supply hose, demand regulator and manifold assemblies are designed to operate at gas supply pressures of up to 225 psig (15.5 bar) above the surrounding ambient pressure.

The regulator adjustment knob is capable of holding back this pressure, with a little bias in reserve. This is so the professional working diver can adapt the helmet or mask to various types of supply systems found on dive stations throughout the world. It is not the intention that the mask or the helmet be normally operated at the high end pressure 225 psig. The normal maximum supply pressure to the Kirby Morgan EXO-26 BR should be dictated by the depth and selected in accordance with the specification lists for the mode of diving being employed.

Includes

Manual EXO® 26, All Models - Part # 100-030

EXO-26 Balanced Regulator Full Face Mask User Guide - Part # 100-131

Big Bore (5/16 in.) Scuba Hose, LP, 29 in. - Part # 255-050

Hi Flow Air Inlet Swivel - Part # 305-017

Standard Scuba Hose, LP, 26” - Part # 355-026

EXO BR Tool Kit with Pouch - Part# 325-630
